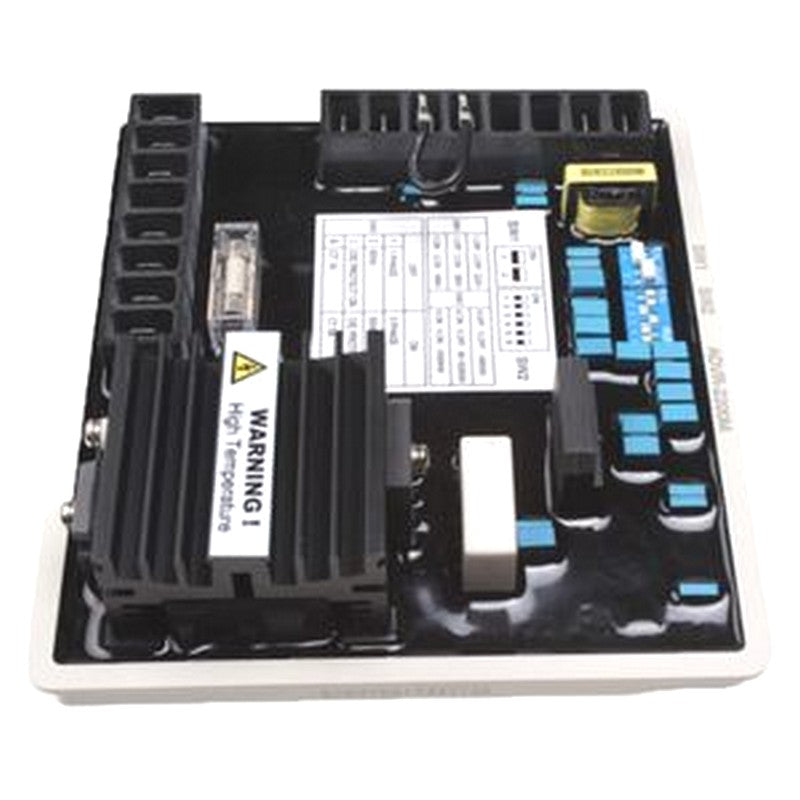

McPherson Controls ADVR-2200M Hybrid Digital Analog Generator Voltage Regulator
- Regular price
- $746.03
- $746.03
- Regular price
-
$746.03 - Sale price
- Unit price
- per
| Quantity | Discount | Best Price |
|---|---|---|
| Buy any 3 items | And get 3% off | $723.65 each |
| Buy any 5 items | And get 5% off | $708.73 each |
| Buy any 10 items | And get 10% off | $671.43 each |
Orders Up to13% Off
Secure Payment
Fast Delivery
24/6-Customer Service
Quality Guarantee
Our product technologist will respond within 24 business hours.
McPherson Controls ADVR-2200M Hybrid Digital Analog Generator Voltage Regulator
Part Number:
ADVR2200M, ADVR-2200M
Application:
Sensing Input:
Voltage
220 to 600 Vac 1 or 3 phase selectable
Frequency
50/60 Hz selectable
Power Input:
Voltage
60 to 300 Vac 1 phase
Frequency
50 to 500 Hz
Excitation Output:
Voltage
Continuous 125 Vdc @ power input 220 Vac
Current
Continuous 3.5A
Intermittent 7A for 10 seconds
Resistance
≧ 18 ohms @ power input 110 Vac
≧ 36 ohms @ power input 220 Vac
Burden in Shunt & PMG Wiring:
550 VA @ power input 110 Vac
1100 VA @ power input 220 Vac
Volts Regulation:
< +/-0.5% (with 4% engine governing)
Build Up Voltage:
Residual volts at AVR terminal > 5 Vac @ 25 Hz
Over Excitation Protection:
Inverse-time 125 +/-5 Vdc @ power input 220 Vac
External Volts Adjustment:
Max. +/-5% @ 500 ohms 1 watt potentiometer
Max. +/-10% @ 1000 ohms 1 watt potentiometer
Static Power Dissipation:
Max. 12 watts
EMI Suppression:
Internal electromagnetic interference filtering
Soft Start Ramp Time:
4 seconds +/-10%
Voltage Thermal Drift:
< 3% at temperature range -40 to +70 °C
Analogue Input:
Input resistance > 2 kΩ
Max. Input +/-5 Vdc or +10 Vdc
Sensitivity 1 Vdc for 2.5% Generator Volts
Quadrature Droop Input:
CT 1A/5A > 5VA (DIP switch setting)
Sensitivity Max. +/-7% @ P.F +/-0.7
Under Frequency Protection (Factory Setting):
50 Hz system presets knee point at 45 Hz
60 Hz system presets knee point at 55 Hz
Environment:
Operating Temperature
-40 to +70 °C
Storage Temperature
-40 to +85 °C
Relative Humidity
Max. 95%
Vibration
5.5Gs @ 60 Hz
AVR Control Functions:
VOLT
Voltage adjustment
STAB
Stability adjustment
U/F
Setting under frequency protection knee point
DROOP
Droop adjustment
TRIM
Analogue input adjustment
DIP
Voltage droop ratio setting
Indication LED:
O/E LED
Over excitation protection indicator
U/F LED
Under frequency protection indicator
Dimension:
150.0 (L) x 135.0 (W) x 55.5 (H) mm
5.91 (L) x 5.31 (W) x 2.19 (H) inch
Weight:
470 g +/-2%
1.04 lb +/-2%
