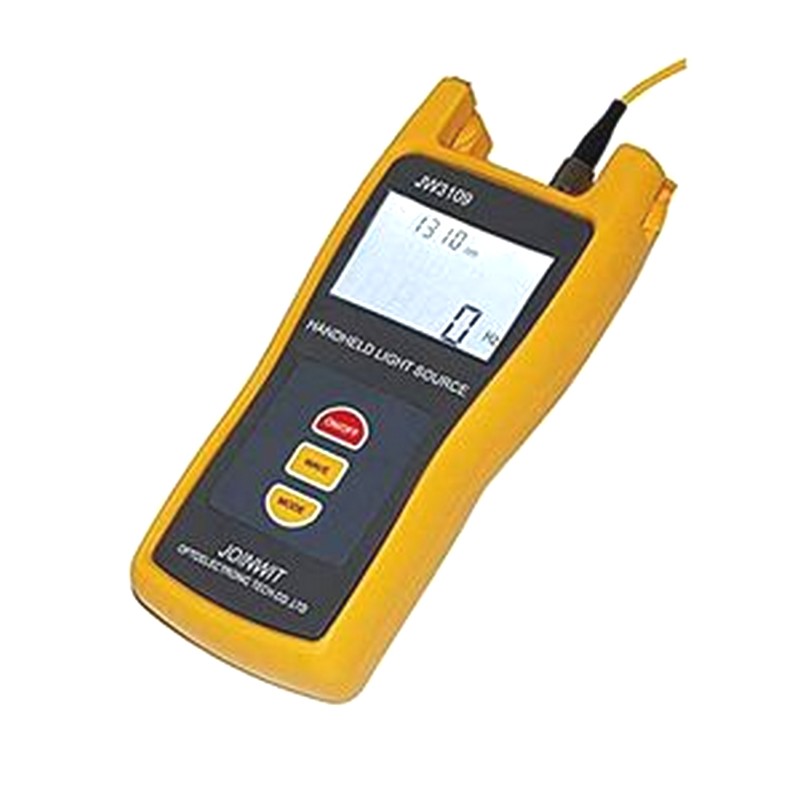

JW3109 Portable Optical Light Source Wavelengths 1310/1550mm
- Regular price
- $322.44
- $322.44
- Regular price
-
$322.44 - Sale price
- Unit price
- per
| Quantity | Discount | Best Price |
|---|---|---|
| Buy any 3 items | And get 3% off | $312.77 each |
| Buy any 5 items | And get 5% off | $306.32 each |
| Buy any 10 items | And get 10% off | $290.20 each |
Orders Up to13% Off
Secure Payment
Fast Delivery
24/6-Customer Service
Quality Guarantee
Our product technologist will respond within 24 business hours.
JW3109 Portable Optical Light Source Wavelengths 1310/1550mm
Part Number:
JW3109
Application:
For JW3109 optical light source can provide 1 to 4 output wavelengths to meet specific requirements, including the 650nm red source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multimode fiber, as well as other wavelengths according to customer needs. Together with the JW3208 optical power meter, it is a perfect solution for the fiber optic network characterization.
FeaturesProvides 1~4 output wavelengths which can be optional according to customer's needs. CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz modulation output at other wavelengths.High stability of the output power.Stable output wavelength.Backlight LCD display supports night operation.Compact size and decent appearance.Large LCD, easy operation.Alternative 10 minutes Auto-off function conserving battery life.
Specification:
:FP-LD,LED or others please specify¡¡Typical Output Power (dBm) 0 -7dBm for LD, -20dBm for LEDSpectral Width(nm):¡Ü10Output Stability :¡À0.05dB/15mins; ¡À0.1dB/ 8hoursModulation Frequencies CW,2Hz CW,270Hz,1KHz,2KHzOptical Connector FC/ universal adaptor FC/PC Power Supply:Alkaline Battery(3 AA 1.5V batteries)Battery Operating Time(hour):45Operating Temperature(¡æ) :-10~+60Storage Temperature(¡æ):-25~+70Dimension(mm):175x82x33Joinwit RecommendationJW3109 Handheld Light Source is designed for optimal use with JW3208 Optical Power Meter for measuring optical loss on both single mode and multimode fiber cable
Type:
JW3109A, JW3109B, JW3109C, JW3109DWavelengths(nm):650, 850/1300, 1310/1550, 850/1300/1310/1550Emitter
